Bosch Serie 4 Bottom Mount Fridge-Freezer Stainless Steel

The Bosch Serie 4 Freestanding Fridge-Freezer (KGN49XL30U) combines heavy-duty storage capacity, modern European styling, and advanced preservation engineering in an expansive 203 cm tall by 70 cm wide footprint. Finished in an elegant stainless steel look with integrated vertical pocket handles, it provides a massive 435-liter net capacity (466L gross), making it ideal for busy family households and meal prep enthusiasts.

Driven by Bosch’s VarioInverter compressor, the cooling system continuously modulates its speed in response to interior temperature shifts, external climate changes, and door openings. This brushless variable-speed technology minimizes wear and tear, delivers whisper-quiet 40 dB performance, keeps power draw low, and guards against household voltage fluctuations. Thanks to Bosch’s Perfect Fit engineering, the unit features an advanced condenser and hinge geometry that lets you place the refrigerator flush against side walls or directly inside a kitchen cabinetry niche with zero side clearance needed to fully open drawers.

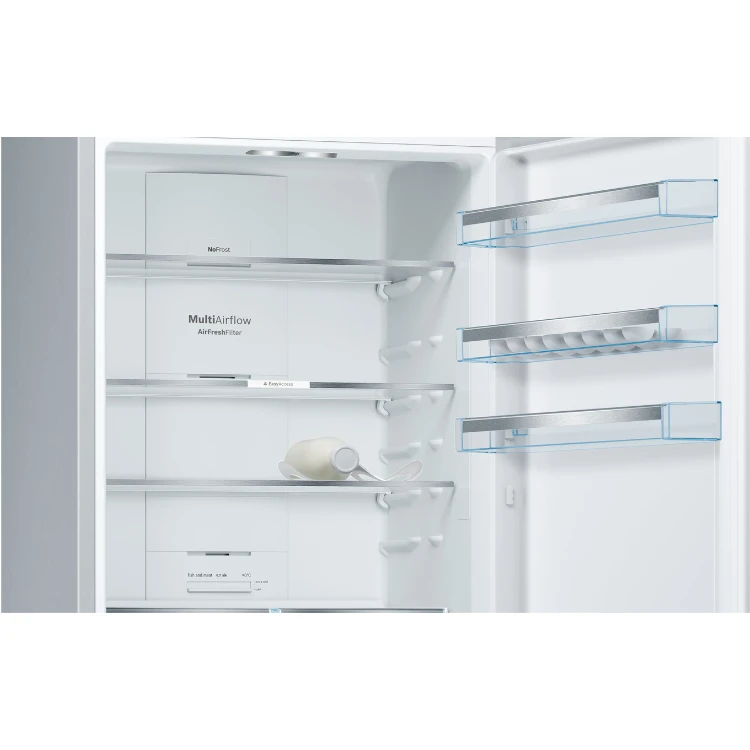

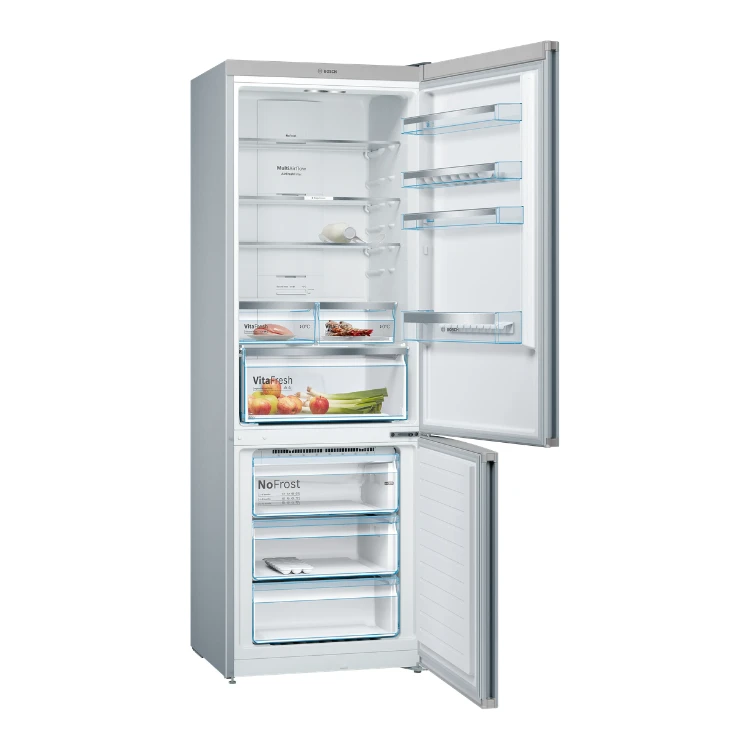

The interior is engineered around freshness and organized access. The VitaFresh system seals in humidity and regulates airflow to keep fruits, vegetables, fish, and meats fresh for extended periods. With 2 independent cooling systems, the fridge and freezer cavities are cooled via separate evaporator circuits, giving you precision temperature regulation while ensuring pungent odors never cross between compartments. Total No Frost technology circulates chilled, dry air to permanently prevent ice build-up. The fridge cavity is illuminated by soft-start LED lighting and features an Easy Access pull-out safety glass shelf, a 2-wave bottle rack, and 4 height-adjustable shelves, while the 4-star freezer provides 3 transparent drawers and an impressive 20-hour power failure safe storage period.

Key Features

• VarioInverter Compressor Technology: Brushless, variable-speed inverter compressor dynamically adjusts cooling output, providing temperature stability, voltage fluctuation resilience, and quiet 40 dB operation.

• Perfect Fit Installation: Innovative condenser and door hinge design allows the unit to sit completely flush against walls and surrounding cabinetry without needing side gaps to pull out drawers.

• Total No Frost Technology: Continuously circulates dry chilled air to eliminate frost and ice formation, permanently removing the need for manual defrosting.

• VitaFresh Climate Storage: Regulates humidity and maintains low temperatures to preserve vitamins, textures, and freshness in fresh produce and meats.

• 2 Independent Cooling Circuits: Separately controllable cooling loops allow independent temperature calibration and prevent flavor/odor crossover between fridge and freezer.

• Easy Access Pull-Out Shelf: Retractable safety glass shelf slides forward effortlessly to provide clear visibility and rapid retrieval of items in the rear.

• SuperCooling & SuperFreezing: Temporarily drops temperatures to rapidly chill newly loaded room-temperature groceries and prevent thawing of existing stock.

• Extended 20-Hour Power Failure Safe Storage: High-density thermal insulation keeps frozen goods completely safe for up to 20 hours during power cuts.

• Soft-Start LED Interior Illumination: Energy-efficient LED lighting gradually ramps up to illuminate every corner of the fridge without glare.

• Acoustic Door & Temperature Alarms: Built-in sensors sound an audible warning if the door is left ajar or if an unexpected temperature rise occurs.

Full Specifications

• Brand: Bosch

• Series: Serie 4

• Model: KGN49XL30U

• Product Type: Freestanding Fridge-Freezer (Freezer at Bottom)

• Installation Typology: Freestanding (Perfect Fit / Flush-to-Wall Capable)

• Width: 70 cm (700 mm)

• Height: 203 cm (2030 mm)

• Depth: 670 mm

• Door Finish: Stainless Steel Look

• Door Hinge: Right Reversible

• Handle Type: Integrated Vertical Pocket Handles

• Compressor Type: VarioInverter (Brushless Variable-Speed Inverter)

• Total Gross Capacity: 466 Liters

• Total Net Capacity: 435 Liters

• Refrigerator Gross Capacity: 338 Liters

• Freezer Gross Capacity: 128 Liters

• Cooling System: Total No Frost (Frost Free)

• Cooling Circuits: 2 Independent Cooling Systems

• Freshness System: VitaFresh

• Noise Level: 40 dB(A) re 1 pW

• Control / Display: Exterior LED Indication with Push Button Controls

• Freezer Star Rating: 4 Stars

• Power Failure Safe Storage Time: 20 Hours

• Interior Lighting: LED with Soft Start (Refrigerator Cavity)

• Refrigerator Layout:

  • 5x Safety Glass Shelves (4 Height-Adjustable, including 1x Easy Access Slide-Out Shelf)

  • 1x 2-Wave Bottle Rack (Plastic)

  • 1x VitaFresh Humidity-Controlled Crisper Compartment

  • 4x Full-Width Door Bins

• Freezer Layout:

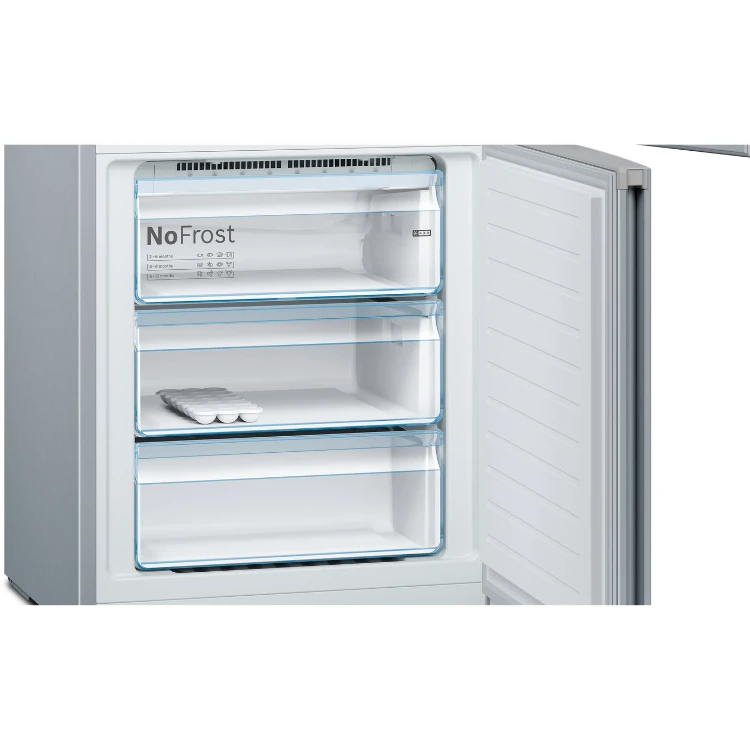

  • 3x Transparent Freezing Drawers

  • 1x Ice Cube Tray with Lid

• Convenience Modes: SuperCooling, SuperFreezing, Flex Interior

• Safety Alarms: Acoustic Open Door Warning, Visual & Acoustic Temperature Rise Alert

• Electrical Supply Cord Length: 240 cm

• Net Weight: 85.3 kg

• Appliance Dimensions (H x W x D): 2030 x 700 x 670 mm

• Packaging Dimensions (H x W x D): 2117 x 753 x 777 mm

Package Contents

• 1x Bosch Serie 4 70cm Bottom-Freezer Refrigerator (KGN49XL30U), Stainless Steel Look

• 3x Egg Trays

• 1x Ice Cube Tray with Lid

• 1x Power Supply Cable (240 cm)

• 1x User Manual & Installation Guide Set
