Xiaomi Router AX1500

The Xiaomi Router AX1500 delivers high-speed, stable home networking powered by Wi-Fi 6 (802.11ax) technology. Engineered for smooth 4K streaming, online learning, and gaming, it achieves combined dual-band concurrent wireless speeds of up to 1501 Mbps (up to 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band).

Designed with smart dual-band integration, the AX1500 unifies the 2.4 GHz and 5 GHz bands under a single network name, automatically shifting connected devices to the optimal frequency based on distance and wall penetration. Equipped with 4 external high-gain antennas and OFDMA multi-device transmission, the router efficiently communicates with multiple endpoints simultaneously, drastically minimizing network buffer and packet drop.

Wired setup is completely streamlined via 4 self-adaptive gigabit ethernet ports (10/100/1000 Mbps) with Auto MDI/MDIX. Users can plug the incoming broadband cable into any port without differentiating between WAN and LAN. The router also natively supports IPTV multi-line multiplexing, allowing direct integration with TV set-top boxes. Two dedicated front-facing LED indicators provide at-a-glance status checks for both system health and active internet connection.

For larger properties, the AX1500 incorporates Xiaomi’s self-developed Mesh technology, supporting hybrid wired and wireless networking with up to 10 compatible Xiaomi routers for millisecond-level roaming. Users running Xiaomi or Redmi smartphones benefit from exclusive game acceleration, which automatically identifies game traffic to lower ping and jitter. Network configuration and parental controls are handled easily via the Mi Home / Xiaomi Home app or web browser interface, backed by MiWiFi ROM, WPA3-SAE encryption, and IPv6 support.

Key Features

• High-Speed Wi-Fi 6 Connectivity: Dual-band wireless speeds up to 1501 Mbps (1201 Mbps on 5 GHz + 300 Mbps on 2.4 GHz).

• 4 Self-Adaptive Gigabit Ports: Full 10/100/1000 Mbps ports automatically switch between WAN and LAN.

• 4 High-Gain External Antennas: Broad signal coverage with strong wall-penetrating capabilities.

• Dual Status LED Indicators: Instant visual confirmation for System status and Internet connection.

• Xiaomi Mesh Networking: Supports up to 10 devices in a unified mesh network with fast roaming and auto-healing.

• OFDMA Transmission: Enables multi-device concurrent data transfer without network congestion.

• Exclusive Mobile Game Boost: Automatically prioritizes traffic for Xiaomi and Redmi smartphones.

• Smart Dual-Band Switching: Combines 2.4 GHz and 5 GHz networks into one SSID with automatic optimization.

• IPTV Multiplexing Support: Direct port assignment simplifies TV set-top box configuration.

• WPA3-SAE Security: Next-generation wireless encryption protocol ensures complete data protection.

• Mi Home App Management: Control network settings, manage guest access, and monitor traffic from your smartphone.

Full Specifications

• Brand: Xiaomi

• Model: Router AX1500

• Color: White

• Product Type: Wi-Fi 6 Gigabit Wireless Router

• Operating System: MiWiFi ROM

• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

• Maximum Wireless Speed: 1501 Mbps (5 GHz: 1201 Mbps | 2.4 GHz: 300 Mbps)

• Wireless Bands: 2.4 GHz & 5 GHz Dual-Band

• Antenna Configuration: 4× High-Gain External Antennas

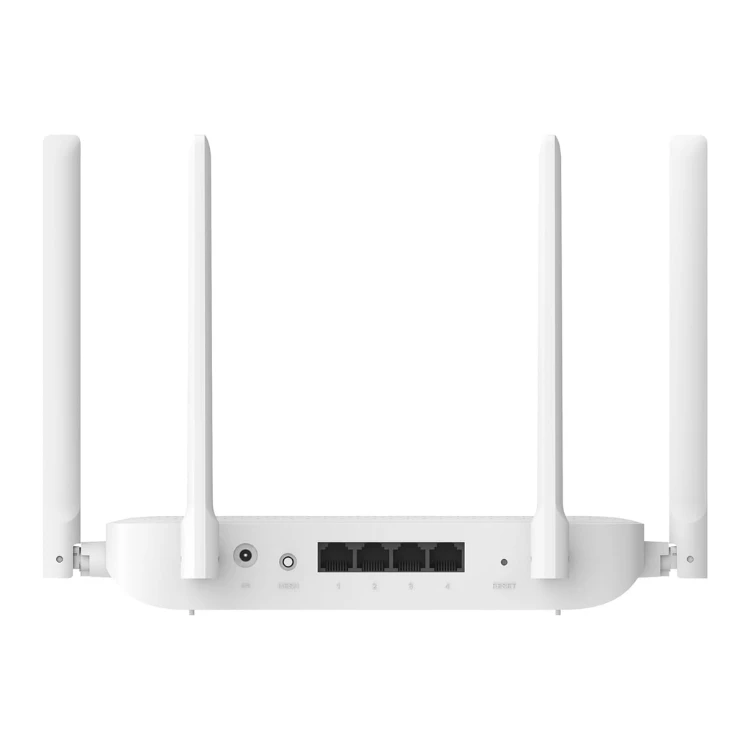

• Ethernet Ports: 4× 10/100/1000 Mbps Self-Adaptive WAN/LAN Ports (Auto MDI/MDIX)

• Buttons: 1× Mesh Networking Button, 1× System Reset Button

• LED Indicators: 2 Lights (1× System Indicator, 1× Internet Indicator)

• Heat Dissipation: Natural Heat Dissipation

• Security & Encryption: WPA-PSK, WPA2-PSK, WPA3-SAE Encryption, Wireless Access Control (Black/White List), Hidden SSID

• Protocol & Features: IPv6, OFDMA, BSS Coloring, IPTV Support, Xiaomi Phone Gaming Acceleration

• Mesh Capability: Up to 10 Mesh Nodes (802.11k/v Fast Roaming)

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 10% to 90% RH (Non-condensing)

• Management Interface: Web Browser, Mi Home / Xiaomi Home App (Android & iOS)

• Dimensions (L × W × H): 247 mm × 143.5 mm × 178.7 mm

• Warranty: Standard Manufacturer Warranty

Package Contents

• 1x Xiaomi Router AX1500 (White)

• 1x RJ45 Ethernet Network Cable

• 1x Power Adapter

• 1x User Manual

• 1x Warranty Card
